6927-TW-80CP
Thermostatic Concealed Shower Valve
Thermostatic Concealed Shower Valve provides the most enjoyable showering experience for the customers.

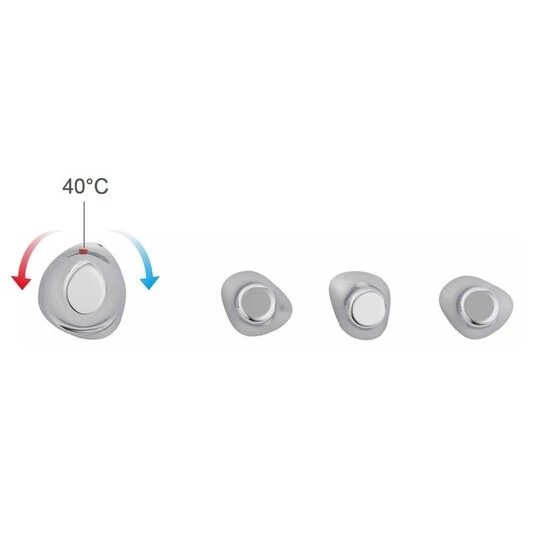

JUSTIME's Nature Series Concealed Mixer Valve inherits the asymmetrical design of this series. For safety aspect, the mixer valve is designed with protection mechanism. To prevent scald during shower, you can only rotate the handle to the demarcation point (40℃), and won't be able to continue without pressing the red button for hotter water.
Moreover, you are allowed to collocate the desired water outlets (handshowers / showerheads / faucets) and switch among them, making shower more than just daily routine, but a source of enjoyment.
Color: Polished Chrome
Share
Download
1.Thermostatic Control Valve is filled with special wax.
2.If the cold water inflow failed, the valve automatically switches off by means of the scald protection device.
3.Safety stop at 40°C .
4.Material of forging body meets JIS 3771 standard.
5.Material of inner valve: C84400 standard.
6.Meet the SC2 standarsd of ASTM.
7.There is a check valve under cartridge to prevent backflow of cold and hot water, and it could be removable for replace and clean.
8.The angle stop can stand the presure from 1 to 6 kg/cm^2.
9.G1/2 intlet.

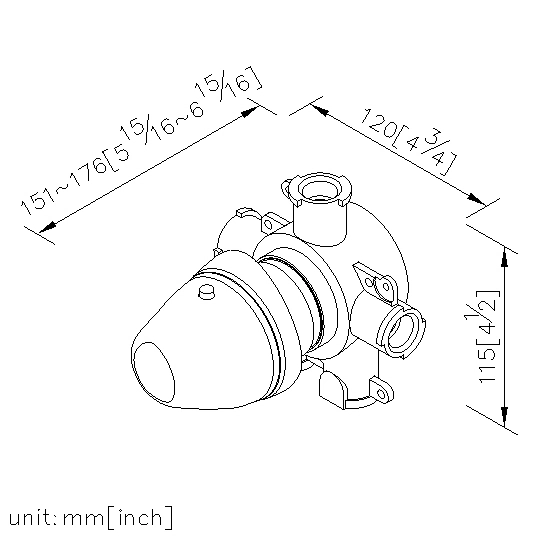

10.The body of valve should be buried in the wall beforehand with 1"(2.5cm) adjusting tolerance in depth.
Authorization Code
6927-TW-80CP SketchUp
6927-TW-80CP CAD
