6903-XZ-80CW
Concealed Valve W/Diverter & Check Valve W/Inlet Stop Version(4~6 kg/cm^2)
Since time immemorial, the ladle has been used to wash and clean the body. This classic design not only reserves and figures of the primary ladle image, but when we use this Story valve, JUSTIME sincerely hopes the design will be popular among everyone- reminding the adults of the past about the original charming and also allowing the kids to experience the beauty of traditional and modern times.
Color: White (coating)
Share
Download
1.Use the C-ring provided if the water pressure is under 1kgf/cm2(14.2PSI)。
2.The maximum water-on handle angle: 180°(hot water); assembled with temperature adjusting ring to control within the highest hot water temperature.
3.Compliant with the standard of ASTM-SC2 for surface finish.
4.Thread G1/2 inlet.
5.With replaceable check valve both inside hot and cold water 1/2" inlet.
6.Applicable water presure is from 4 to 6 kg/cm^2.

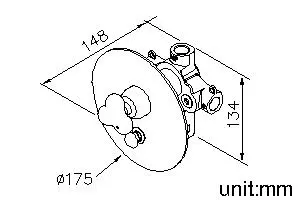

7.The constructing depth of embedded valve body is between 2"(6cm)~3"(7.6cm) from the finished wall.
8.Ceramic valve with KOREA ceramic disc.
9.Temperature adjustable and on-off water valve by counter clockwise swiveling handle for 180° from left (cold) to right (hot).
10.Past 500,000 times lifespan test.
11.With inlet stop on valve.
