6796-WS-82CP

Toilet Shut-Off Sprayer W/Valve & Bracket & Hose


Design for convenient operating, the delicate sprayer has advantages of both aesthetic and functionality. It is the best demonstration of pursuing quality, bringing modern fashion for household life. With precise assembly, the spayer can stand high water pressure and prevent leaking, which also provides efficency for washing toilets.


Color: Polished Chrome

  • CP
  • S1

Share

Download

6796-WS-82CP Overview

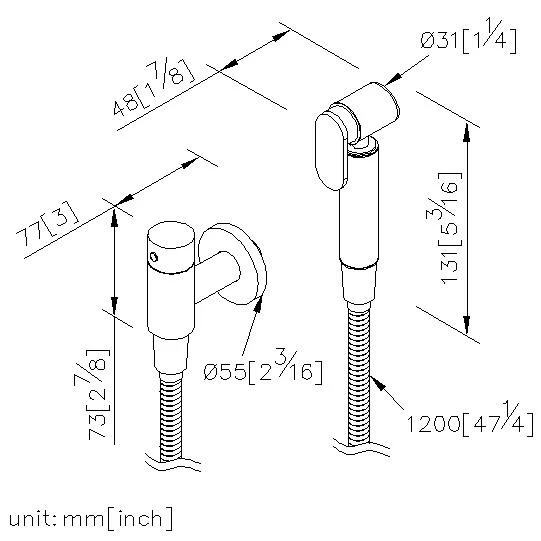

6796-WS-82CP Specification

6796-WS-82CP Installation

6796-WS-82CP Exploded View


1.With R 1/2 to water supply wall outlet。
2.Handle valve turning range from closed position: 90°
3.Ceramic cartridge with brass shell & Japan (MARUWA) ceramic disc. The ceramic disc performs well on wear resistance, having 10 years guarantee.
4.Brass with Chrome plated meets ASTM-SC2 standard; 5 years guarantee.
5.With precise manufacture, the mixer can stand the pressure from 0.1kg to10kg


Authorization Code

6796-WS-82CP SketchUp

6796-WS-82CP CAD
