6909-97-80CP

Kitchen Faucet


Designed main body style as square shape, the aesthetics of symmetry exudes a stylish and charming atmosphere. With R angle processed, it softens the sharp angle of hard steel, and brings soft and elegant atmosphere to a bathroom space.


Color: Polished Chrome

  • CP

Share

Download

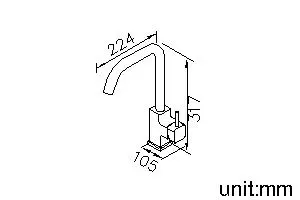

6909-97-80CP Specification

6909-97-80CP Installation


1.Swiveling spout can be adjusted by consumer request and passed up to 50,000 turns test.
2.Ceramic valve with CERAMTEC ceramic disc / (Germany)
3.Handle can be moved upward to 25° to adjust water flow from closed position, hot and cold water controlled by swinging handle 45° on left and right sides.
4.Stainless steel braided hose with SANTOPRENE tube (meets NSF approval), can bear 15Kg/cm2 water pressure and 120℃ heat.
5.Stainless steel braided hose with M10 x 1.0mm (Male thread connected to faucet body) and 1/2"-14NPSM (Female thread connected to water supply system).
6.Aerator flow restrictor (2.2 GPM max.), end-user can remove it for large water flow request.
7.Brass with Chrome plated meets ASTM-SC2 standard.
8.Spout material meets JIS C2700 Standard
9.Handle material meets JIS 3771 Standard.
10.Faucet body material meets JIS 3604 Standard.


Authorization Code

6909-97-80CP SketchUp
