6770-94-80S1

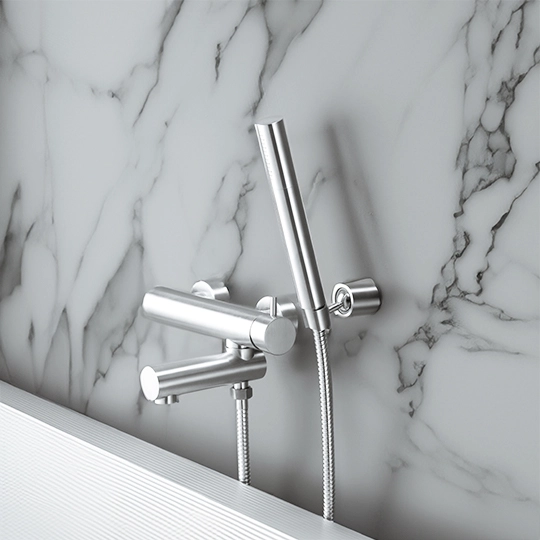

Bath/Shower Mixer Body (Stainless Steel)
Inspired by the main design conception of “Less is More,” Still One used brief lines and a simple model to integrate the practicality and elegance with the concise design style. It also fits for the general kitchen arrangement- small and saving space.The product is made of lead-free brass or stainless steel, which both meet NSF Standard.
Color: Brushed
Share
Download
1.Stainless Steel material has character of acid-resisting, heat-resistant and erode-resisting and surface with brushed finish could increase durability. It is convenience for user to clean the environment.
2.Swiveling filler with diverter valve to change the flow from hand shower to bath filler. It can saving space when using bath tub and pass 50,000 times turning test.
3.Thread of wall outlet: 1/2-14 NPT.
4.Ceramic valve with CERAMTEC ceramic disc / (Germany)
5.Handle can be moved up to 25° to adjust water flow from closed position, hot and cold water control by swinging handle 45°.
6.The available distance between two centers of wall water-outlet is 122mm to 178mm.
7.Stainless steel braided hose with SANTOPRENE tube (meets NSF approval), can be stood 15Kg/cm2 water pressure and 120℃ heat.
