7757-90-80CP

Basin Faucet (Extra-Length Type)


This series is a typical cylindrical body design, which shows a balanced and symmetrical beauty. The special shape of the flame handle, as a symbol of hope. Overall mix to create a noble, harmonious visual experience.


Color: Polished Chrome

  • CP

Share

Download

7757-90-80CP Overview

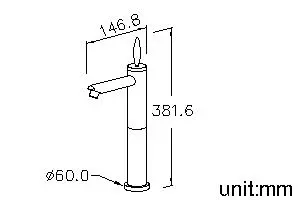

7757-90-80CP Specification

7757-90-80CP Installation


1.Brass of casting body meets JIS 3604 standard.
2.Finish meets the standard of ASTM-SC2.
3.Ceramic valve with CERAMTEC ceramic disc/(Germany).
4.Stainless steel braided hose with M10 × 1.0mm (Male thread connect to faucet body) and 1/2"-14NPSM (Female thread connect to water supplier system).
5.Stainless steel braided hose with SANTOPRENE tube (meets NSF approval), can be stood 15Kg/cm2 water pressure and 120℃ heat.
6.Aerator with removable flow restrictor (2.2 GPM max.), end-user can take off it for larger water flow if necessary.
7.Coordinates with other products in Candle collection.


Authorization Code

7757-90-80CP SketchUp

7757-90-80CP CAD
