7920-96-80CP

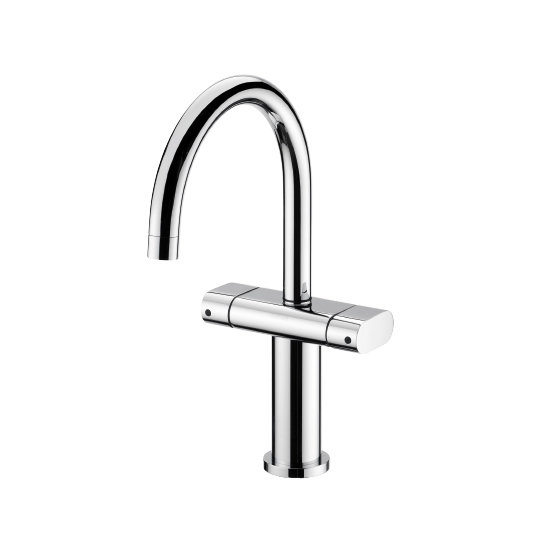

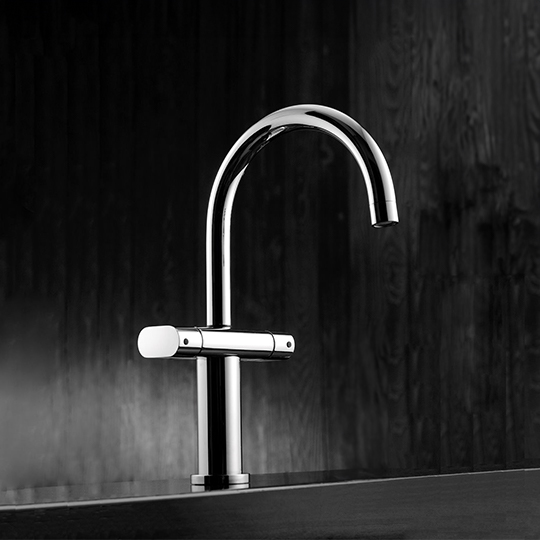

Kitchen Faucet


JUSTIME made some transformation in oval to increase a sense of modernity, fitting the fashion of this generation, and adding elegant style into 6920 Series.


Color: Polished Chrome

Download

7920-96-80CP Installation1

7920-96-80CP Overview

7920-96-80CP Exploded View

7920-96-80CP Specification

7920-96-80CP SketchUp

7920-96-80CP CAD


1.Special design gets rid of complex lines and interstices where filth accumulated easily.
2.Spout could be swiveded by consumer and has passed up to 50,000 turns test.
3.Ceramic cartridge with brass shell & Japan (MARUWA) ceramic disc.
4.Handle valve turning range from closed position:  90°
5.Stainless steel braided hose with SANTOPRENE tube (meets NSF approval), can bear 15Kg/cm2 water pressure and 120℃ heat.
6.Stainless steel braided hose with M10 x 1.0mm (Male thread connected to faucet body) and 1/2"-14NPSM (Female thread connected to water supply system).
7.Aerator with removable flow restrictor (2.2 GPM max.), end-user can take it off for larger water flow if necessary.
8.Spout material meets JIS C2700 standard.
9.Forging handle material meets JIS 3771 standard.
10.Casting body material meets ISO CuZn40Pb standard.
11.Brass with Chrome plated, meet ASTM-SC2 standard.
