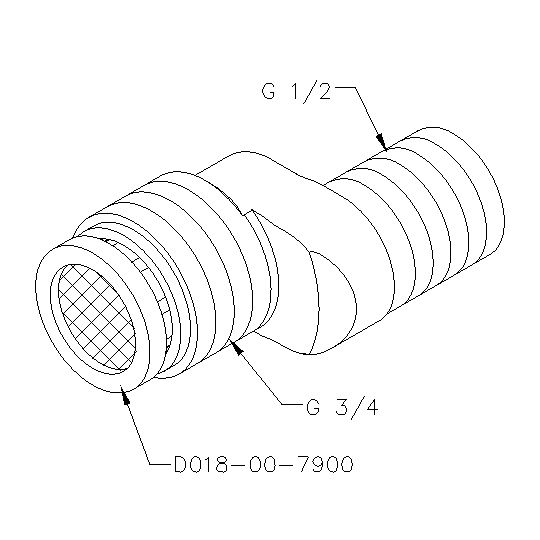

6874-YS-81CR

Adaptor With Filter Gasket


Connector with filter inside, it could be used to connect between angle stop/water supply and braided hose. The filter could stop the dirt from coming inside and protect the cartridge of faucet, and the filter could be removed easily for cleaning after long term usage.


Color: Chrome

Download

6874-YS-81CR Installation1

6874-YS-81CR Overview

6874-YS-81CR Exploded View

6874-YS-81CR Specification

6874-YS-81CR SketchUp

6874-YS-81CR CAD


1.Brass with chrome-plated finish meets the standard of ASTM-SC2.
2.Brass material meets JIS 3604 Standard.

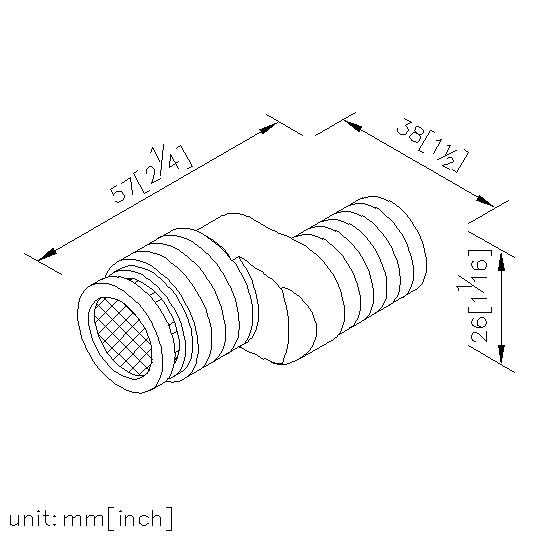

3.Thread: (M)1/2G*(M)3/4-14BSPF.
4.Protruding filter.
