6797-S0-80CP

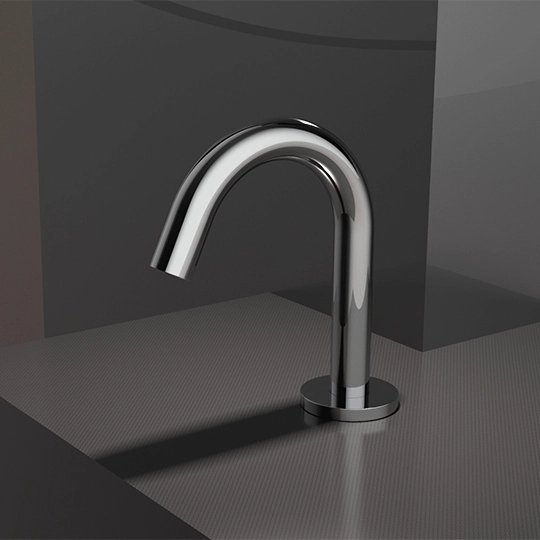

Sensor Basin Faucet (Cold Only)(DC)


In the earlier periods, the principal Greek architectural feature has been column. As time goes on, the hieron developed elegantly with more slender cylinder, the Temple of Athena Nike and Parthenon become the famous edifice as the cylindrical element. Inspired column as main idea 6797 series had been designed with simple but elegant cylindrical shape, which display a sense of simplicity and harmony.


Color: Polished Chrome

  • Sensor Basin Faucet (Cold Only)(DC)
  • Sensor Basin Faucet (Cold Only)(DC)
  • Sensor Basin Faucet (Cold Only)(DC)

Share

6797-S0-80CP Overview

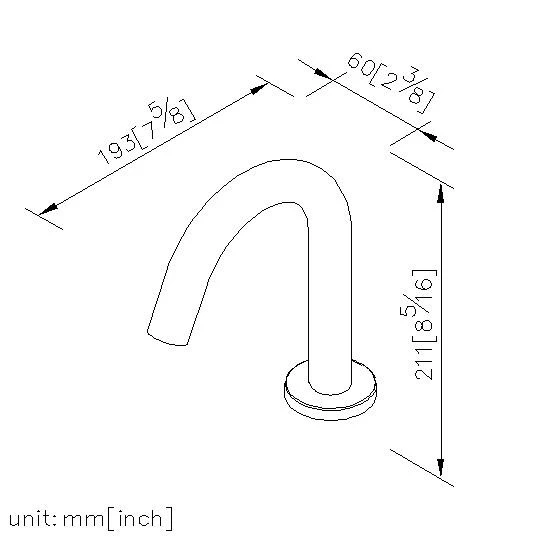

6797-S0-80CP Specification

6797-S0-80CP Installation

6797-S0-80CP Exploded View


1.Infrared Sensor Automatic Detection
2.Safety Guard: Valve off if water flowing over 60sec.
3.Automatically detect the environment, adjust the sensor, and have anti-interference function.
4.Inner filter prevent the bloackage of sensor valve.
5.Power Source: Alkaline Battery AA x 4, DC6V(1.5V x 4)
6.Battery life test: about 300,000 alkaline batteries; about 100,000 carbon zinc batteries.
7.Flush Mode: Water start flowing if valid sening around 0.5sec~1.0sec
8.Low power prompt: When battery power is low, red indicator light will be flashed for prompting battery replacement.
9.The faucet valve can stand the presure from 0.5 to 6 kgf/cm^2
10.Brass with Chrome plated meets ASTM-SC2 standard; 5 years guarantee.
11.Stainless steel braided hose with SANTOPRENE tube (meets NSF approval), can be stood 15Kg/cm2 water pressure and 120℃ heat.
12.Brass meets ISO CuZn40Pb Standard

The rectifier is optional.

ITEM NO:

  • 0923-SH-7900  AC→DC Rectifier 100V~240V
  • 0923-SH-7901  AC→DC Rectifier 110V
  • 0923-SH-7902  AC→DC Rectifier 220V

Authorization Code

6797-S0-80CP SketchUP

  6797-S0-80CP CAD
