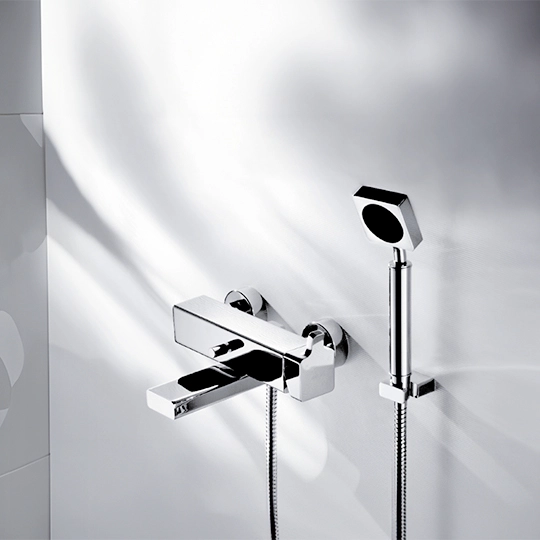

Bath/Shower Mixer W/Hand Shower & Hose & Wall Bracket

Designed main body style as square shape, the aesthetics of symmetry exudes a stylish and charming atmosphere. With R angle processed, it soften the right angle of hard steel, and bring more soft and elegant atmosphere to a bathroom space.

Color: Polished Chrome

  • Bath/Shower Mixer W/Hand Shower & Hose & Wall Bracket


7909-94-81CP Overview

7909-94-81CP Specification

7909-94-81CP Installation

1.The smooth line of handle is the feature.
2.Swiveling bath spout can save space while using bath tub.
3.The spray head of hand shower can be removed easily by easy-tool provided for cleaning.
4.Ceramic valve with KOREA ceramic disc / (Korea)
5.Handle can be moved up to 25° to adjust water flow from closed position, hot and cold water controlled by swinging handle for 45° both right and left sides.
6.Elastic shower hose can be extended from 1.5 meter to 2 meters and bear 15Kg/cm2 water pressure.
7.The available distance between two centers of wall water-outlet is 122mm to 178mm.
8.With R 1/2 to water supply wall outlet.
9.Brass with Chrome plated meets ASTM-SC2 standard.
10.Casting body material meets ISO CuZn40Pb Standard.
11.Forging handle material meets JIS 3771 Standard.

Authorization Code

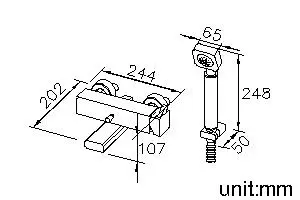

  7909-94-81CP CAD
