7909-94-80CP

Bath/Shower Mixer Body

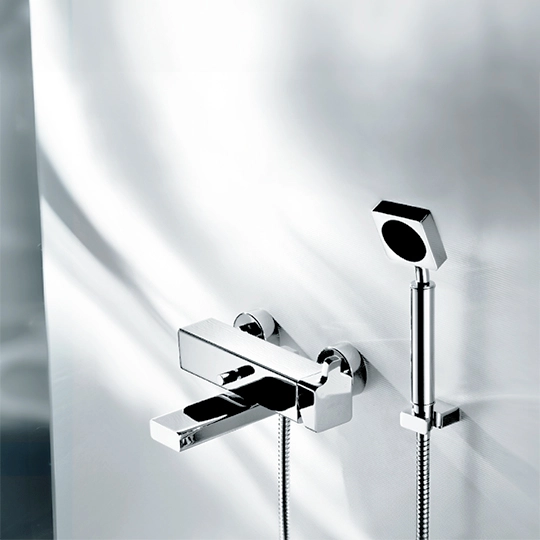

Designed main body style as square shape, the aesthetics of symmetry exudes a stylish and charming atmosphere. With R angle processed, it soften the right angle of hard steel, and bring more soft and elegant atmosphere to a bathroom space.


Color: Polished Chrome

  • CP

Share

Download

7909-94-80CP Overview

7909-94-80CP Specification

7909-94-80CP Installation


1.The smooth line of handle is the feature.
2.Swiveling bath spout can save space while using bath tub.
3.Ceramic valve with KOREA ceramic disc / (Korea)
4.Handle can be moved up to 25° to adjust water flow from closed position, hot and cold water controlled by swinging handle for 45° both right and left sides.

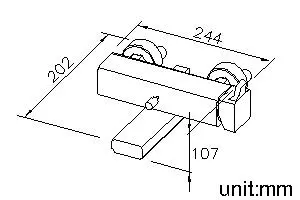

5.The available distance between two centers of wall water-outlet is 122mm to 178mm.
6.With R 1/2 to water supply wall outlet.
7.Brass with Chrome plated meets ASTM-SC2 standard.
8.Casting body material meets ISO CuZn40Pb Standard.
9.Forging handle material meets JIS 3771 Standard.


Authorization Code

7909-94-80CP SketchUp

7909-94-80CP CAD
