6777-XW-80MA

Concealed Valve W/Diverter & Check Valve W/O Inlet Stop Version(1~4 kg/cm^2)


Seed is the fountainhead of creation, but not all seeds could sprout and grow up, so each budding seed is the symbol of hope and happiness. Moreover, spout of "Lucky 7" is like growing stalk to present various styles as creative ideas of designers.
Succinct pillared shape design simplified lines of spout and handle for not only presenting complete figure to be brief and elegant, but also decreasing time and cost of production. Stick Handle has been designed to operate easily in wet or slippery conditions.


Color: Matt black

  • MA

Share

Download

6777-XW-80MA Overview

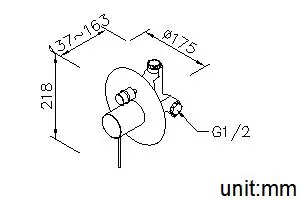

6777-XW-80MA Specification

6777-XW-80MA Installation


Using the C-ring provided if the water pressure under 1kgf/cm2/(14.2PSI)。
SC2 standard of ASTM
G1/2 inlet.
With replaceable check valve both behind hot and cold water 1/2" inlet.
The faucet should be used at the water presure from 1 to 4 kg/cm^2.
Handle can be moved up to 25° to adjust water flow rate from closed position, hot and cold water controlled by swinging handle for 45° both right and left sides.
The burying depth of embedded body is between 2"(6cm)Min~3"(7.6cm)Max from the finished wall.
