6796-91-80CP

Basin Mixer


In the earlier periods, the principal Greek architectural feature has been column. As time goes on, the hieron developed elegantly with more slender cylinder, the Temple of Athena Nike and Parthenon become the famous edifice as the cylindrical element. Inspired column as main idea 6796 series had been designed with simple but elegant cylindrical shape, which display a sense of simplicity and harmony.


Color: Polished Chrome

  • CP

Share

Download

6796-91-80CP Overview

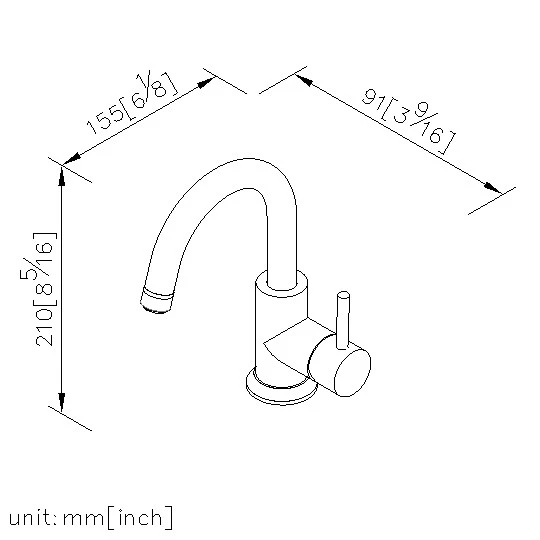

6796-91-80CP Specification

6796-91-80CP Installation


1.Ceramic valve with CERAMTEC ceramic disc / (Germany)
2.Handle can be moved up to 22° to adjust water flow from closed position; hot and cold water controlled by swinging handle for 45° both front and back sides.
3.Stainless steel braided hose with M10 x 1.0mm (Male thread connect to faucet body) and 1/2"-14NPSM (Female thread connect to water supply system).
4.Aerator with removable flow restrictor (2.2 GPM max.), end-user can take off it for larger water flow if necessary.
5.Brass with Chrome plated meets ASTM-SC2 standard.
6.Swiveling spout (up to 50,000 turns test).
7.Casting material meets ISO CuZn40Pb Standard.
