6790-X6-80CP

Single-Handle Kitchen Faucet


The design of Arch Series combines well-executed lines and smooth curves to come into the sharply contrastive but perfect visional impression to reveal beauty of mordent fashion and historical culture.


Color: Polished Chrome

  • CP

Share

Download

6790-X6-80CP Specification

6790-X6-80CP Overview

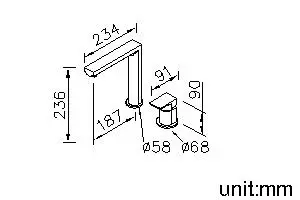

6790-X6-80CP Installation


1.Universal mold design which uses common parts and increase more convenient for maintained.
2.Ceramic cartridge with brass shell & Japan (MARUWA) ceramic disc.
3.Swiveling spout has passed up to 50,000 turns test. It can be adjusted by user.
4.Stainless steel braided hose with SANTOPRENE tube (meets NSF approval), can be stood 15Kg/cm2 water pressure and 120℃ heat.
5.Stainless steel braided hose with M10 x 1.0mm (Male thread connect to faucet body) and 1/2"-14NPSM (Female thread connect to water supplier system).
6.Aerator with removable flow restrictor (2.2 GPM max.), end-user can take off it for larger water flow if necessary.
7.Casting material meets ISO CuZn40Pb Standard.
8.Handle material meets JIS 3771 Standard.
9.Brass with Chrome plated, meet ASTM-SC2 standard.
