Bath/Rainshower System

For modern times, modeling and beauty are not the only demands. The product with "varied function" and "convenience" become the main demands of consumers.
The round shape of Rainshower System display the beauty of noblesse. Rainshower System provides multiple enjoyment of ease and comfort.

Color: Polished Chrome

  • Bath/Rainshower System


6757-BD-80CP Overview

6757-BD-80CP Specification

6757-BD-80CP Installation

1.Brass with Chrome plated meets ASTM-SC2 standard.
2.Adjust the water supply to hand shower or rain shower by pressing deverter.
3.The faucet should be used at the water presure from 1 to 6 kg/cm^2.
4.Ceramic valve with CERAMTEC ceramic disc / (Germany)
5.Elastic shower hose can be extended from 1.5 meter to 2 meter.
6.Adjustable angle of the hand-shower bracket.

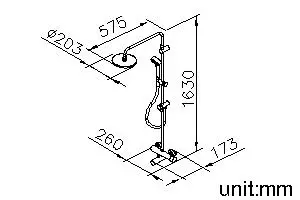

7.The available distance between two centers of wall water-outlet is 122mm to 178mm.
8.The swiveling shower arm could be adjusted for the different spray position within available range.
9.With G 1/2 to water supply wall outlet.
10.Casting material meets ISO CuZn40Pb Standard.
11.3 Functions hand shower:1.Saturating spray 2.Massage spray 3.Saturating & massage spray.

Authorization Code

6757-BD-80CP SketchUp

  6757-BD-80CP CAD
