6757-XQ-80CP

Mixer Valve


Customers need not to assemble a big and space-occupied faucet to adjust the temperature any more; this creative Mixer Valve breaks the rules of your existing thought of how to adjust the temperature. Besides, there is a switch inside the valve, for installing, disassembling and maintaining the faucet more easily.
Based on the Functionalism of "Form Follows Function," though this product is installed on the wall, the unsophisticated design easily simplifies and saves the using space. Differed from the existing wall-mounted faucet, customers have more choices when choosing collocating faucets.


Color: Polished Chrome

  • CP

Share

Download

6757-XQ-80CP Overview

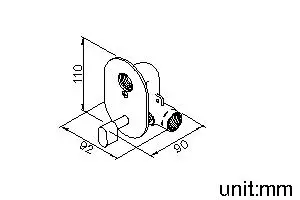

6757-XQ-80CP Specification

6757-XQ-80CP Installation

6757-XQ-80CP Exploded View


  1. This mixer valve 1/2" outlet can be fit with bib tap, angle stop, toilet sprayer or hand shower for seasons using.
  2. With replaceable check valve ( NEOPERL) both behind hot and cold water 1/2" inlet.
  3. Adjust outlet water temperature by rotate stem handle while in using this mixer valve.
  4. Chrome plated finish meets the standard of ASTM-SC2.
  5. Thread: G 1/2
  6. The faucet should be used at the water presure from 1 to 6 kg/cm^2.
